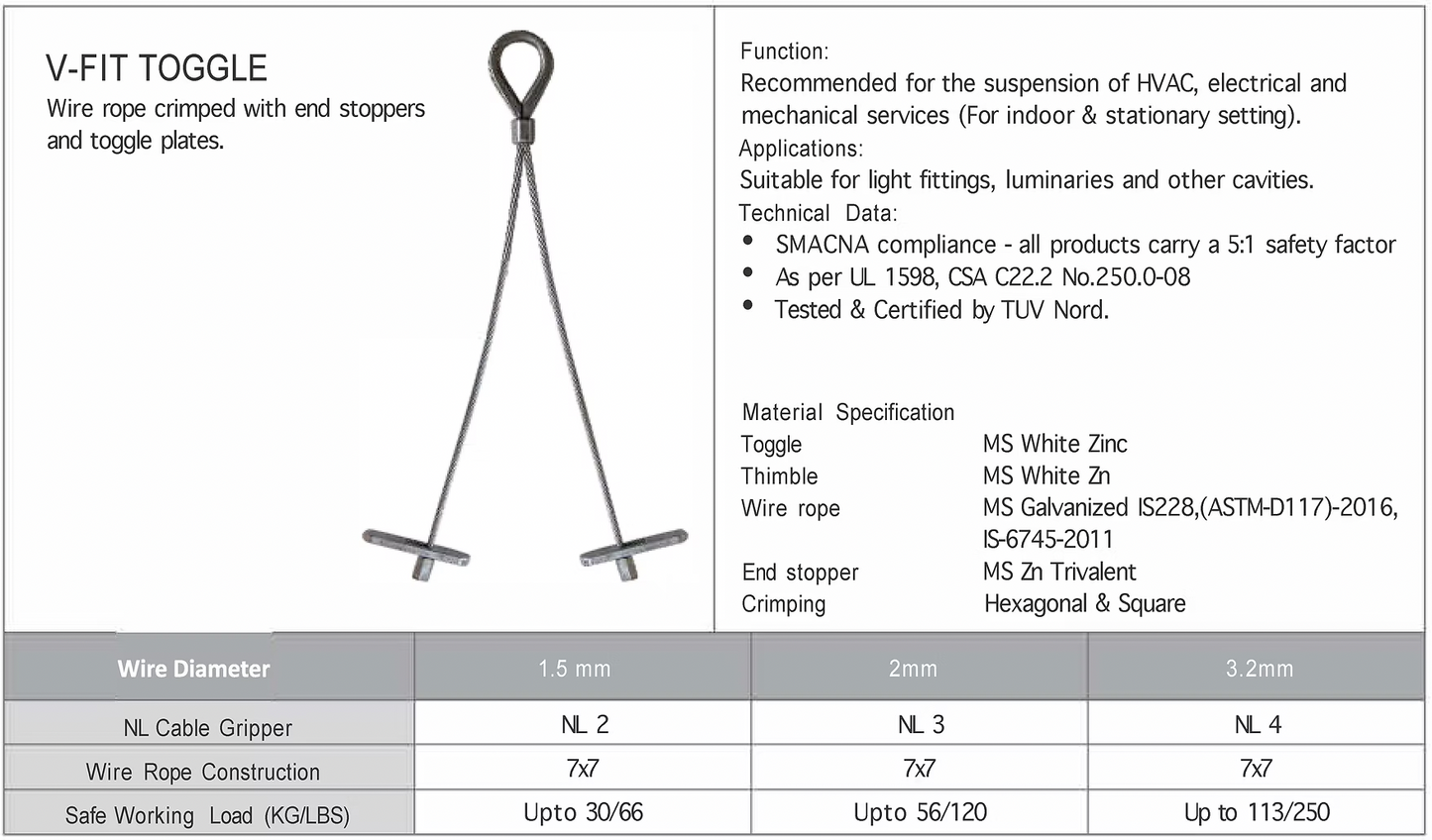

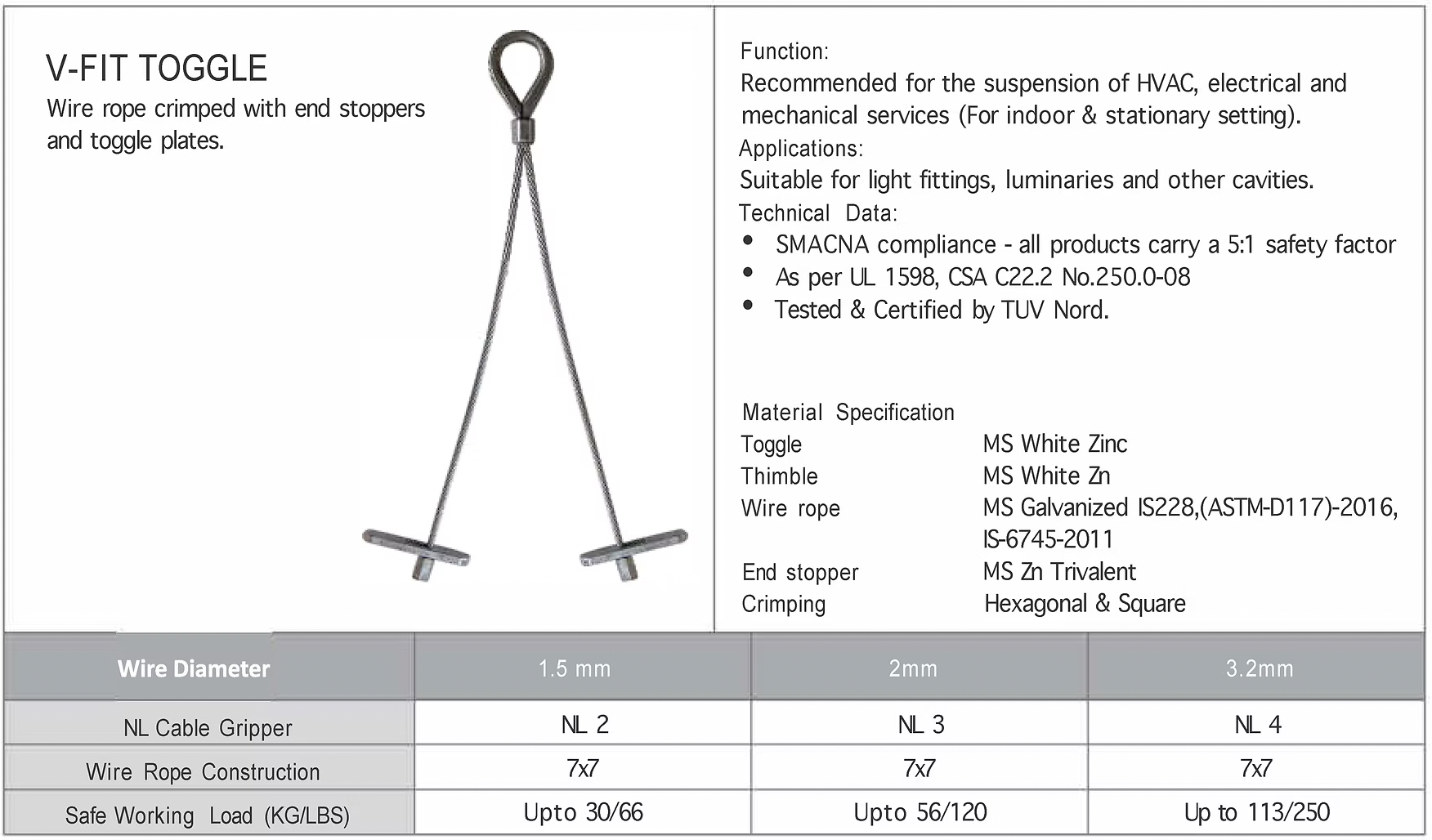

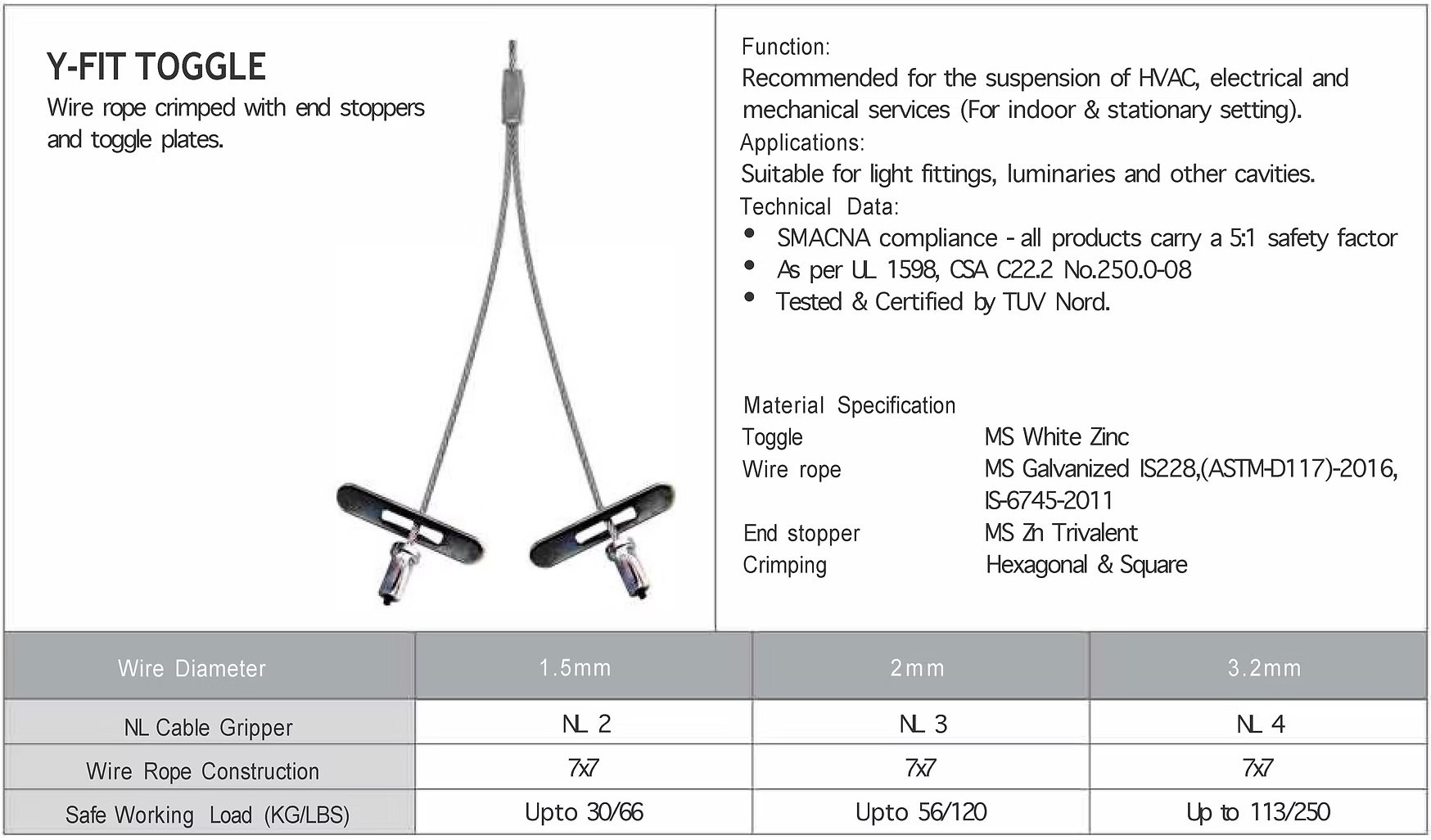

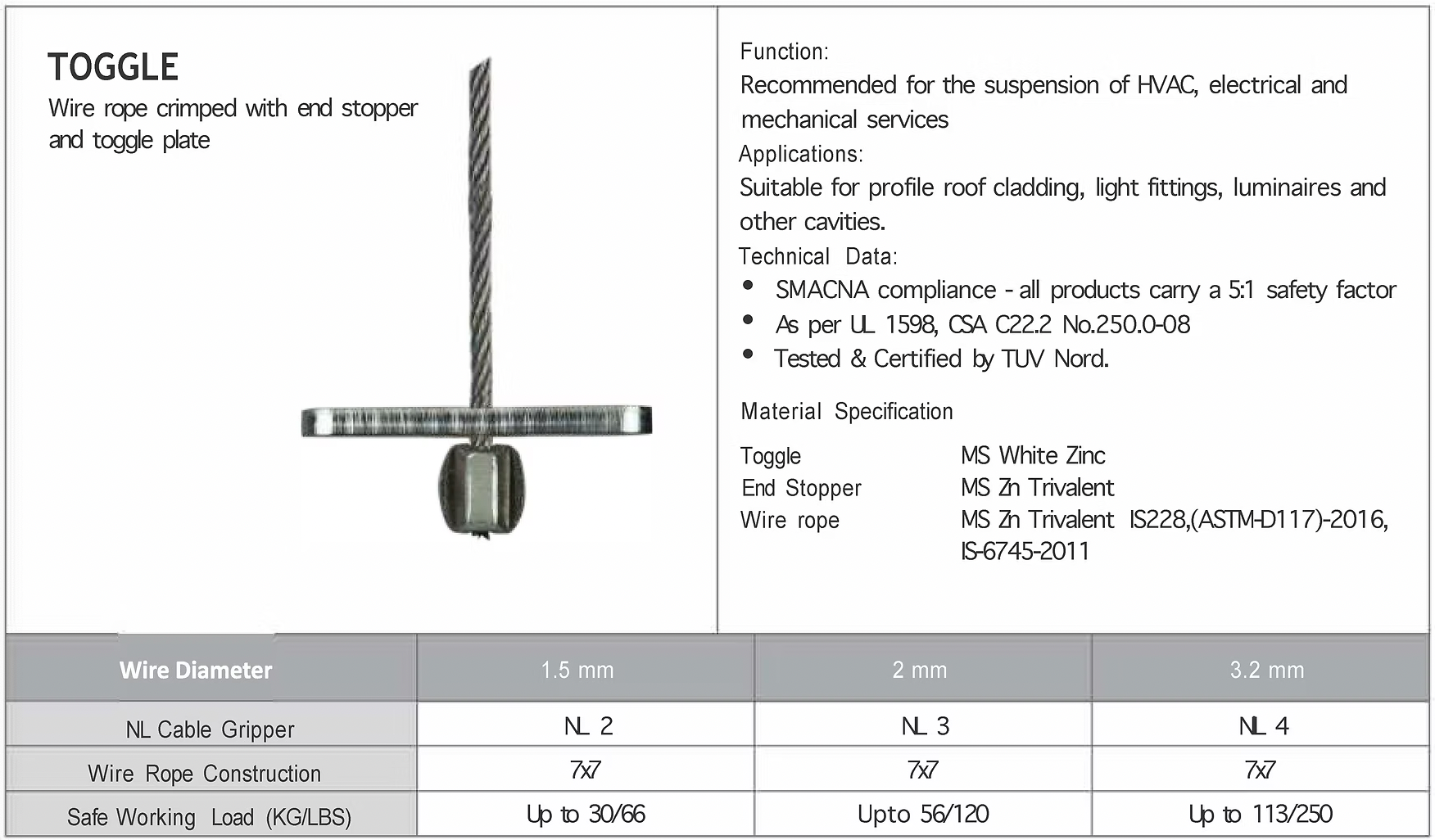

Precision-engineered toggle hardware for rapid suspension of HVAC, electrical, and mechanical services. Recommended for indoor and stationary settings. Available as single toggle, Y-configuration, or as a complete Toggle Y Kit with paddles for Unistrut/strut-channel installations.
Safe Working Loads
| Cable Size | SWL |
|---|---|
| 1/16" | 65 lbs |
| 3/32" | 125 lbs |
| 1/8" | 250 lbs |

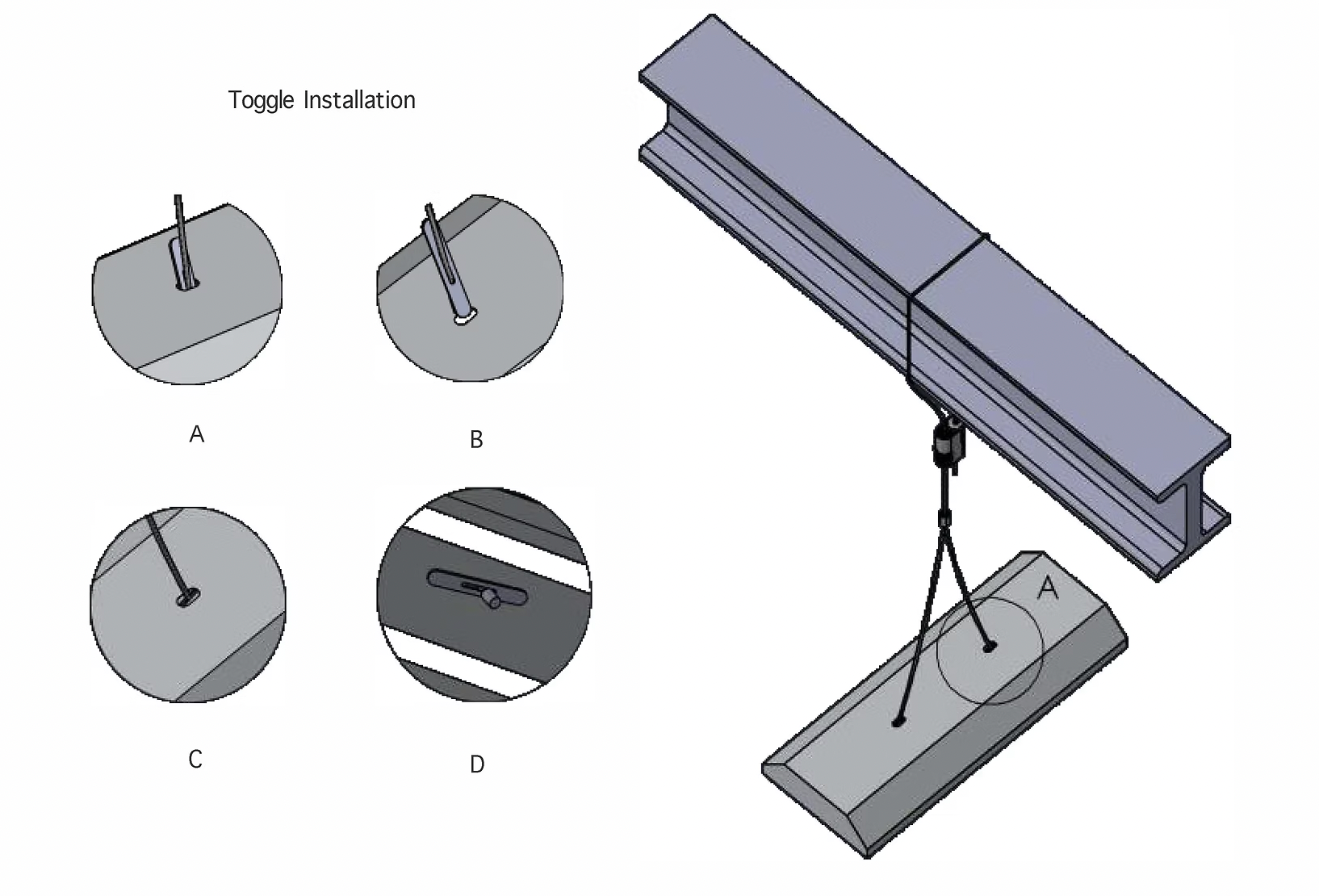

Toggle Y Kit Configuration (NB-LG XXX-XXY-PAD-K)
SKU range: 97001 / 97002 / 97003 / 97004
- 2-pack (per box)
- Maximum load rating per hanger: 80 lbs (1/16" cable)
- Includes: NL2 NEBULOK gripper, 1/16" galvanized cable, and paddles
- Designed to clip into Unistrut / strut channel
- Paddle dimensions: 6" × 18.5"
- Paddle slot fits 1/4" – 3/8" mounting holes
Available Drop Lengths
- 60"
- 120"
- 180"
- 240"
Applications
- HVAC duct suspension
- Electrical service support
- Mechanical equipment hanging
- Cable tray mounting
- Pipe and conduit support
- Lighting fixture suspension
